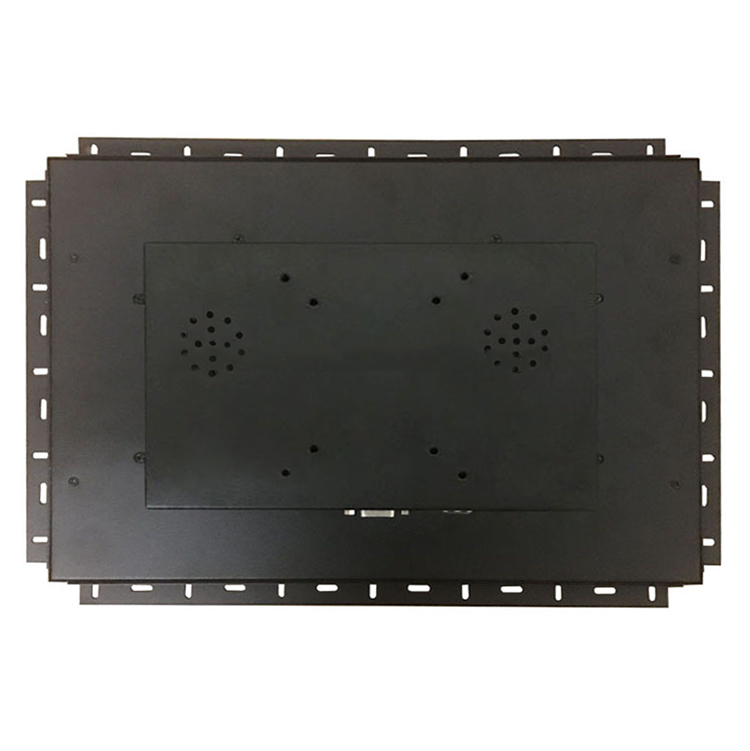

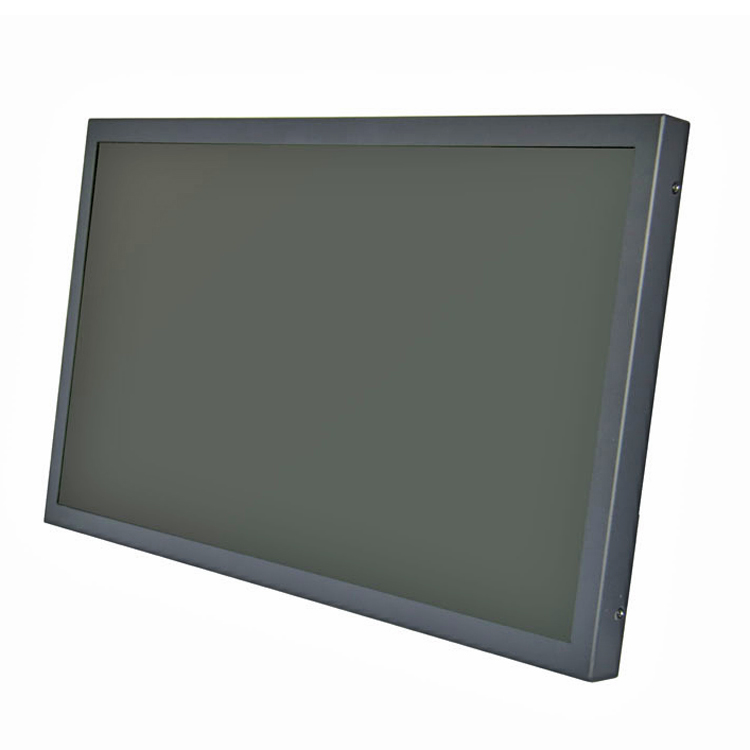

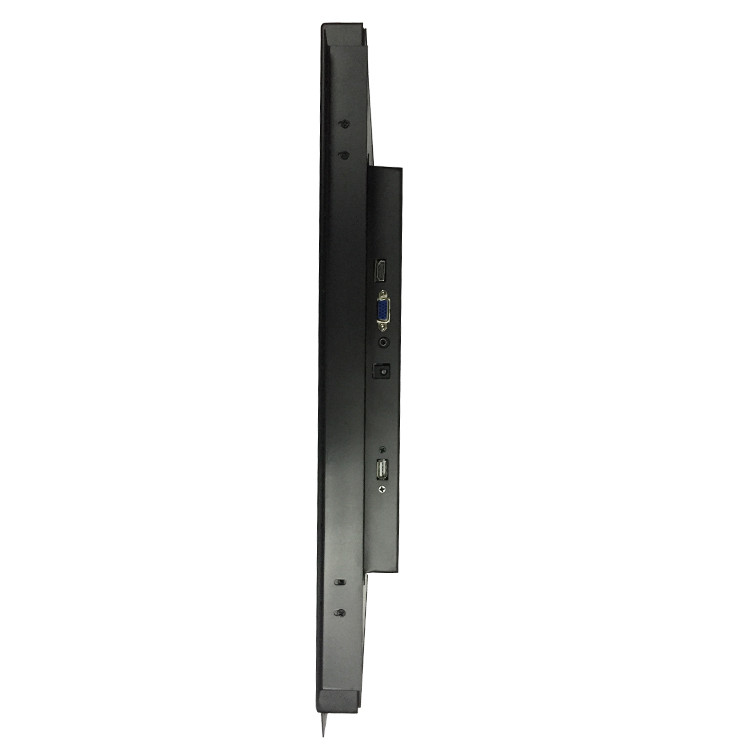

Product name : 19 inch LCD widescreen Open Frame Monitor
Item : VK190WD
 Enlarge Image                   Back
←[Previous Product]


Details:
Key Specifications
System parameters Panel Size 19" Digital TFT-LCD Panel
LCD Panel SAMSUNG/TORISAN/MITSUBISHI
Panel Grade A+ pefect panel
Aspect Ratio 16:9 19 inches (diagonal)
Working Voltage DC  12V AC100-240V
Power consumption <30W Typ
Resolutions 1440*900
Backlight CCFL Backlight
LCD Brightness 350 cd/m2
Input configuraion VGA
View Angle 160/160deg
Adjust Angle Horizontal:160° Vertical:140°
Audio system BG/DK/IM/NL
Frequency 30~80KHz/60~75Hz
Operation Environment Workable Temperature:-10 to 60°C
Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;
storage relative humidity:10% to 90%
Chromatic System PAL/NTSC Auto Switch
Duration 50000hours
Operation system DOS/Window 9X,ME,2K,XP,7 Vista, NT, CE,LINUX,
Mac  win7  win8 win10

Accessories 1pcs LCD Monitor
1pcs Instruction Manual
1pcs VGA Cable
Some Screw for Fixing the Shelf
